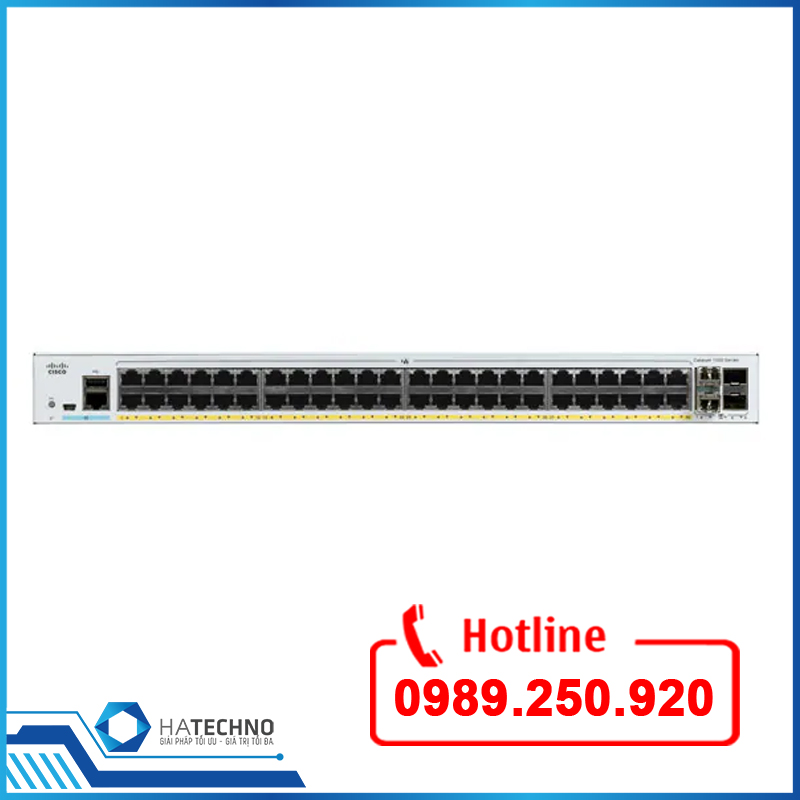

Switch Cisco C1000-48P-4X-L

Name: Switch Cisco C1000-48P-4X-L | HATECHNO
Brand: Switch Cisco

(Chưa bao gồm VAT)

Thiết bị chuyển mạch Switch Cisco C1000-48P-4X-L Catalyst 1000 Series 48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks.

Chat Facebook Zalo: 0966.90.11.66

Danh mục: Switch Cisco, Thiết Bị Mạng Từ khóa: C1000-48P-4X-L, Cisco C1000-48P-4X-L, Switch Cisco C1000-48P-4X-L

Mô tả sản phẩm

5/5 - (8 bình chọn)

Switch Cisco C1000-48P-4X-L

Tổng quan Switch Cisco C1000-48P-4X-L

Thiết bị mạng Switch Cisco C1000-48P-4X-L được thiết kế cho doanh nghiệp vừa và nhỏ, thay thế cho dòng switch Cisco 2960L được CNTTShop phân phối chính hãng tại Việt Nam. Switch Cisco C1000-48P-4X-L với 48 cổng Gigabit 10/100/1000, 4 cổng uplink sử dụng Module quang 10GE, cung cấp các kết nối Layer trong hệ thống mạng.

Switch Cisco C1000-48P-4X-L được thiết kế không quạt, có thể được triển khai ngay tại nơi làm việc mà không ảnh hưởng tới môi trường xung quanh.

Thông số kỹ thuật Switch Cisco C1000-48P-4X-L

Description	Performance
Hardware Switch Cisco C1000-48P-4X-L
Interface	48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks
PoE power budget	370W
Available PoE power per port	30W for any 12 ports or 15W for 24 ports
Console ports	1x RJ-45 Ethernet 1x USB-A port for storage and Bluetooth console
Indicator LEDs	Per-port status: link integrity, disabled, activity System status: system
Dimensions (WxDxH in inches)	17.48 x 13.78 x 1.73
Weight	5.43
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	88 Gbps
Switching bandwidth	176 Gbps
Forwarding rate (64‑byte L3 packets)	130.94 Mpps
Unicast MAC addresses	16000
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 static routes	16
IPv6 static routes	16
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Dying Gasp	Yes
Electrical
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.29A to 0.48A
Power rating (maximum consumption)	0.09 kVA
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: Emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	USGv6 and IPv6 Ready Logo
